M2i Modular Conveyors
M2i provides modular conveyors in the UK, delivering scalable, efficient and fully integrated material handling conveyors for logistics, manufacturing and automation environments.
Every M2i conveyor shares the same modular architecture — a common End Take-Up Unit and interchangeable central sections — so a system can be reconfigured rather than replaced as layouts change.
The range covers straight runs from 1200 mm to 12000 mm and curved belt sections at 30°, 45°, 60° and 90° on a 1550 mm centreline radius, all engineered for IATA-category baggage (IATA Resolution 743b) at speeds up to 2.0 m/s.
Vision panels are included as standard for tool-free maintenance, and a low spares count keeps systems reliable and cost-effective over their working life.
Modular Straight Conveyors — straight belt runs from 1200 mm to 12000 mm on a 1000 mm belt, with a choice of mid- or end-drive and reversible belt direction.
Modular Curved Belt Conveyors — patent-pending modular belt curves at 30°, 45°, 60° and 90° on a 1550 mm centreline radius, with a 100% recyclable modular belt.
Modular Slat Conveyors / Overlapping Carousels — flat overlapping slat carousels for baggage reclaim and circular product transport.
Eco Curve Retrofit Belt — a patented (WO2023284927) retrofit kit that converts existing PVC belt curves to a recyclable modular belt in situ, in many cases returning the conveyor to service the same day.

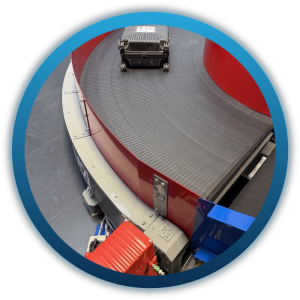

Precision-engineered curves for directional change with minimal product disruption.
Modular belt curves at 30°, 45°, 60° and 90° on a 1550 mm centreline radius, with a 100% recyclable modular belt.
Only the central section changes to set the angle, so a curve can be reconfigured rather than replaced as layouts evolve.
Compact recirculation for baggage reclaim and buffering.
Flat overlapping slat carousels designed for baggage reclaim and continuous circular product transport.
The overlapping-plate design keeps bags moving smoothly around the loop, integrating with straight and curved feed lines.
Reliable straight conveyor modules for efficient, high-speed transport in continuous flow systems.
Straight belt runs from 1200 mm to 12000 mm, with a choice of mid- or end-drive and reversible belt direction.
Modular sections allow flexible layouts, simple maintenance and scalable expansion across airports, logistics and industry.

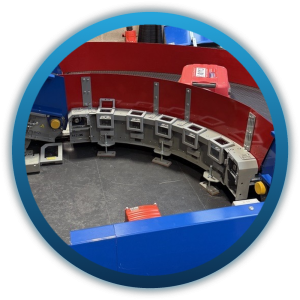

A recyclable modular belt upgrade for existing curved conveyors.
A patented (WO2023284927) kit that converts existing PVC belt curves to a recyclable modular belt, fitted in situ.
Ideal for sustainable upgrades with minimal disruption — in many cases the conveyor is back in service the same day.
Modular conveyors for parcel, mail-order and distribution handling.
Straight and curved modular sections configured for transportation, buffer accumulation and junction control.
The same modular architecture lets lines be extended or reconfigured as parcel throughput and layouts change.
Complete modular systems built from standard, interchangeable parts.
Straight runs, curves, slat carousels and retrofits connect via overlapping transition plates or bolted end plates.
The result is one integrated material handling system that can be extended or reconfigured over its working life.
M2 Industries conveyors are engineered to reduce lifecycle costs while supporting sustainable material handling infrastructure.
Modular conveyor architecture simplifies maintenance, reduces energy consumption and enables efficient long-term operation across complex conveyor networks.
The modular plastic belt is 100% recyclable and can be sectionally repaired, reground and recycled rather than sent to landfill — and the reduced component count means fewer parts to stock and replace.
- Standardised modular conveyor architecture
- Flexible system configurations
- Efficient installation and system integration
- Reduced maintenance and simplified servicing
- Consistent engineering performance
- Scalable conveyor system expansion
- Airport baggage handling systems
- Parcel and logistics distribution centres
- Industrial automation and manufacturing lines
- Warehouse and fulfilment operations
Frequently Asked Questions
A modular conveyor system is built from standard, interchangeable sections — a common End Take-Up Unit with mid beds and central sections — so it can be extended or reconfigured rather than replaced as layouts change. M2i manufactures modular conveyors in the West Midlands for material handling across the UK.
Modular straight conveyors (1200–12000 mm), modular curved belt conveyors (30, 45, 60 and 90 degrees at a 1550 mm centreline radius), flat overlapping slat carousels, and the Eco Curve retrofit kit for converting existing PVC belt curves to a modular belt.
Because the sections are standardised and interchangeable, a system can be reconfigured or extended without buying a completely new conveyor, spares holdings are lower, and the recyclable modular belt supports sustainable, long-life operation.
Yes. They are designed for IATA-category baggage, meet IATA Resolution 743b Attachment ‘A’, run at speeds up to 2.0 m/s and carry up to 60 kg/m, with fire-retardant rated belting.
